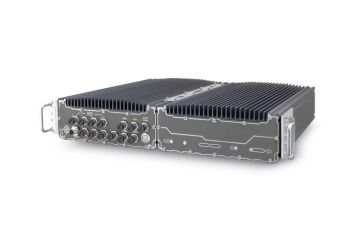

SEMIL-1700GC
Producent: Neousys Technology
Wodoodporny komputer GPU o klasie szczelności IP67, NVIDIA® Tesla T4 lub Quadro P2200, procesor Intel® Xeon® E lub 9/8 Core ™, złącza M12
Opis
- Wbudowany procesor graficzny NVIDIA® Tesla T4 lub Quadro P2200
- Klasa szczelności IP67
- Wsparcie dla Intel® Xeon® E lub procesor 9/8 generacji Core ™ i7 / i5 / i3
- Opatentowana wodoodporna obudowa 2U 19 "do montażu w szafie lub na ścianie
- Gwarantowana najwyższa wydajność GPU do 62 °C otoczenia (bez throttlingu)
- Do ośmiu portów Gigabit PoE + 802.3at. Złącza M12, kodowanie X.
- Porty VGA, USB 2.0 i COM. Złącza M12 z kodowaniem A.
- Szeroki zakres napięcia zasilania 8 ~ 48 V z wbudowaną kontrolą opóźnienia uruchomienia w stosunku do zapłonu pojazdu
- Certyfikat MIL-STD-810G i EN 50155
Opis
Podstawowe parametry
- Intel Xeon E lub procesor Core i7/i5/i3 9/8 generacji
- Do 64GB pamięci DDR4
- Obsługa RAID 0/1
- Wsparcie TPM 2.0
- Wbudowany procesor graficzny NVIDIA® Tesla T4 lub Quadro P2200
- Certyfikat MIL-STD-810G i EN 50155
- Szeroki zakres temperatur -40°C ~ 70°C
- Klasa szczelności IP67
Test poprawnej pracy komputera SEMIL-1700GC zanurzonego w wodzie. Klasa szczelności IP67.
Specyfikacja techniczna
| SEMIL-1744GC | SEMIL-1724GC | SEMIL-1748GC | SEMIL-1728GC | |
| Processor | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
|||
|---|---|---|---|---|
| Chipset | Intel® C246 platform controller hub | |||
| Graphics | Integrated Intel® UHD Graphics 630 | |||
| Acceleration GPU | NVIDIA® Tesla T4 | NVIDIA® Quadro P2200 | NVIDIA® Tesla T4 | NVIDIA® Quadro P2200 |
| Memory | Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets) | |||
| AMT | Supports AMT 12.0 | |||
| TPM | Supports TPM 2.0 | |||
| PoE+ | 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) | |||
| 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | |||
| 10 GbE Port(Build Option) | Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)** | |||
| Native Video Port | 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution | |||
| Series Port | 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) | |||
| USB | 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
4x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
||
| Audio | - | 1x mic-in and speaker-out (M12 A-coded) | ||
| SATA HDD | 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 | |||
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) | |||
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation | |||
| Mini PCI-E | 2x full-size mini PCI Express socket (mux with mSATA) | 2x full-size mini PCI Express socket (mux with mSATA) 2x full-size mini PCI Express socket |
||
| DC Input | 8V to 48V DC input (M12 S-coded) | |||
| Ignition Control | Built-in ignition power control (IGN/ GND signal via M12 serial port connector) | |||
| Dimension | 440mm (W) x 310mm (D) x 86.5mm (H) (excl. rack-mount bracket) | |||
| Weight | 12Kg | 12.2Kg | ||
| Mounting | Rack-mounting and wall-mounting | |||
| Operating Temperature | with 35W CPU -25°C ~ 70°C **** with >= 65W CPU -25°C ~ 70°C ***/ **** (configured as 35W TDP mode) -25°C ~ 50°C ***/ **** (configured as 65W TDP mode) |
|||
| Storage Temperature | -40°C ~85°C | |||
| Humidity | 10%~90% , non-condensing | |||
| Vibration | MIL-STD-810G, Method 514.7, Category 4 | |||
| Shock | MIL-STD-810G, Method 516.7, Procedure I | |||
| EMC | EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035 | |||
